Products
| NF-466 |
 |
Brand Name : Noyafa Model Number : NF-466 Main Function : Verify RJ45 cables Power : 9V Alkaline battery Port : RJ45 |
|
| NF-468V |
 |
Brand Name : Noyafa Model Number : NF-468V Main Function : Verify RJ11, RJ45 cables Power : 9V Alkaline battery Port : RJ11, RJ45 |
|
| NF-468S |
 |
Is_customized : Yes Brand Name : Noyafa Model Number : NF-468S Main Function : Verify RJ11,RJ45,RJ12 cables and POE test Power : 9V Alkaline battery (DC 9.0V)
|
|
| NF-3468 |
 |
Brand Name : Noyafa Model Number : NF-3468 Main Function : Testing 4 types of cables: RJ11/ RJ45/ USB/ BNC Power : 9V Alkaline battery Port : RJ11/ RJ45 /BNC/ USB
|
|
| NF-811 |
 |
|
Brand Name : Noyafa Model Number : NF-811 Main Function : Verify and tracing RJ11, RJ45 cables Power Main unit : 9V Alkaline battery Power Remote unit : 9V Alkaline battery Port : RJ11/ RJ45
|
|
| NF-812 |
 |
Brand Name : Noyafa Model Number : NF-812 Main Function : Line search test, line alignment test, POE power supply test, open circuit/short circuit test, battery polarity test. Power Main unit : 9V Alkaline battery Power Remote unit : 9V Alkaline battery Port : RJ11/ RJ45 |
|
| NF-488 |
 |
Brand Name : Noyafa Model Number : NF-488 Main Function : Verify RJ45 cables and check PoE device Power : 3xAAA battery Port : RJ45/ PoE
|
|
| NF-802 |
 |
|
OEM / ODM: Yes Brand Name: Noyafa Model Number: NF-802 Interface Type: RJ11/ RJ45 Tracing Cable type: CAT5 CAT6 Power: 3.7V,1400Ah Lithium polymer battery
|
|
| NF-808 |
 |
Continuity check; Cable Scan and Trace; QC Testing; PoE power supply check; Connection testing; NCV; Headphone; Rechargeable battery and lower power warning; Led lighting. |
|
| NF-918S |
 |
Brand Name : Noyafa Model Number : NF-918S Main Function : Tone Generator and Probe (Tracer), Accurate continuity test, PoE detection, QC test for crystal head, 6-Wavelength Optical Power Meter, NCV, VFL. Tracking Type : PoE, RJ45, RJ11 Cable Other Function : Lighting Power : 3.7V 1400mAh Lithium battery
|
|
| NF-820 |
 |
Brand Name : Noyafa Model Number : NF-820 Main function : Locate the wire towards which high or low voltage Depth detection range : 0~2m Length detection range : 1km Power Supply for receiver : 3.7V lithium battery Power Supply for transmitter : 3.7V lithium battery |
|
| NF-8209Pro |
 |
Brand Name : Noyafa Model Number : NF-8209Pro Main Function : Detecting PoE voltage, current, power, PoE standards Power supply modes, Verify RJ45 cables (Lenght, Scan, Continuity) Tracking Type : PoE, RJ45 Cable Other Function : Lighting & NCV(non-contact voltage), QC Power : 3.7V 1400mAh Litium battery
|
|
| NF-859GK |
 |
Brand Name : Noyafa Model Number : NF-859GK Main Function : Network Cable Tester with IP Tester, detecting PoE voltage, current, power, PoE standards, Power supply modes, Verify RJ45 cables (Lenght, Scan, Continuity), VFL, Port Flash Tracking Type : PoE, RJ45 Cable Other Function : Lighting & NCV(non-contact voltage), QC Power : 3.7V 1400mAh Litium battery |
|
| NF-8509 |
 |
NF-8509 Cable tester and Wire Tracker with Multimeter Brand Name : Noyafa Model Number: NF-8509 Auto-off: Yes Wire mapping test: Yes Wire scanning: 600m Wire length test: 5 - 200m (+-3m) Port flashing test: 10m / 100m / 1,000m PoE: 4-core / 8-core power supply detection. PoE voltage detection Continuity test: 1) Detects the connectivity performance of wires and various conductors. 2) Identify the polarity and forward voltage drop of diodes (0-3.3V) NCV function: Inductive voltage detector (0-4 levels) Resistance measurement: 600Ω - 60MΩ (accuracy:+-1.0%+5) AC/DC voltage measurement: 600mV - 610V (DC accuracy: +-0.5% + 3; AC accuracy: +-0.5%+3) AC/DC measurement: 1mA - 3A DC (accuracy: +-0.8% + 3) Power: 3.7V/1,500mA lithium battery |
|
| NF-B509 |
 |
|
NF-B509 Cable tester and Wire Tracker with Multimeter Model: NF-B509 Main functions: Network cable tester, tracer, length meter; PoE test and port locator; digital multimeter and non-contact voltage detector Auto-off: Yes Continuity tester: 2000m or 6,561ft max test range Cable length meter: 5-200m (±3m) or 16-656ft(±9ft) Port locator: 10M, 100M, or 1000M PoE: 4 or 8 pins power tester; voltage test NCV: 0 to 4 levels Temperature Measure: Yes Resistor Measure: 600Ω - 60MΩ (±1.0%+5) Voltage Measure: 600mV to 610V (DC: ±0.5%+3 ; AC: ±0.5%+3) Current Measure: 1mA - 3A DC ( ±0.8%+3) Power: 3.7V/1500mAh lithium battery Dimension: 137.5*76*34 |
|

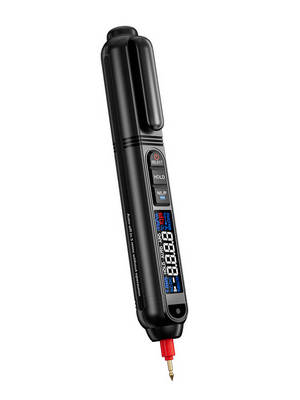

| NF-620 |
 |
Model: NF-620 Display: FNST with color Max display: 5999(3/5/6)automatic polarity display Testing method: Double integral A/D conversion Sampling rate: 3 times/s Over range display: "OL" Working environment: 0-40°C, H<80% Working voltage: DCV/ACV Resistor/Capacitor/Diode: ✓ Frequency: 1HZ-10MHZ(Voltage <36V) Non-contact phase sequence measurement: ✓ RMS: ✓ NCV: ✓ Backlight: ✓ Unit of Temp: °C/°F Flashlight: ✓ Power supply: AAA 1.5V Product size: 171X24x21mm
|
|
|
