- Connection box CAT.7 is for connecting two installation cables. Module is also suitable for CAT.5e, CAT.6, CAT.6a, CAT.7 installation cables.
- All commercially available 4 or 8-core installation cables from AWG 26 - 22 up to a sheath diameter of 10 mm can be processed.
- Connection via LSA connection technology, with strain relief.

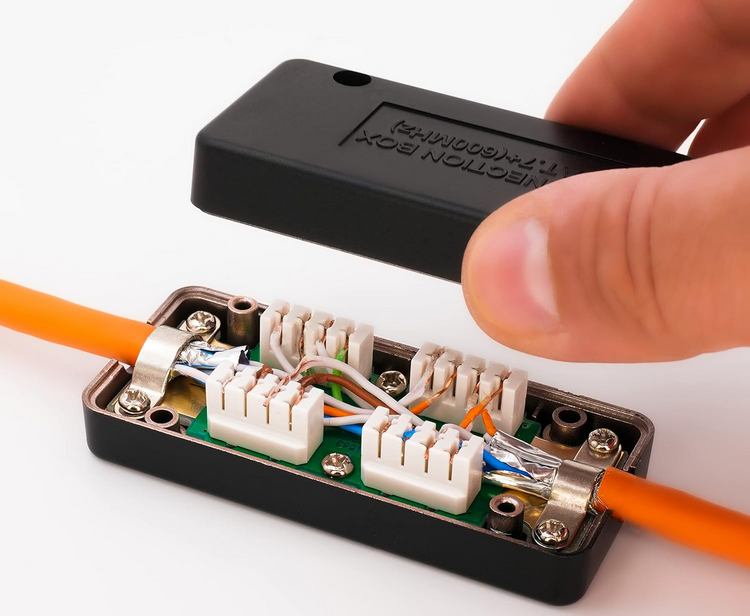

- The extension module allows you to extend installation cables or reconnect damaged cables without having to completely relay a cable segment.

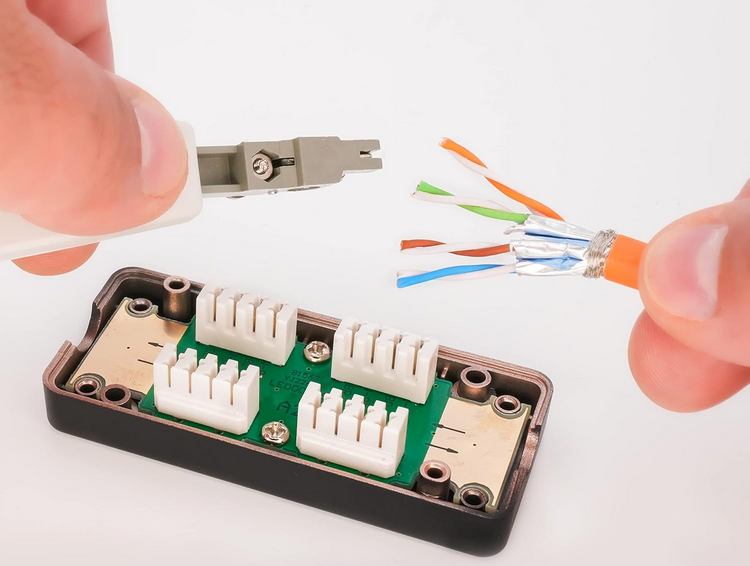

- The two cable ends are connected using LSA insulation terminals.
- Inner casing metallised, suitable for 10/100/1000/10000 Mbit/s transmission.
|
